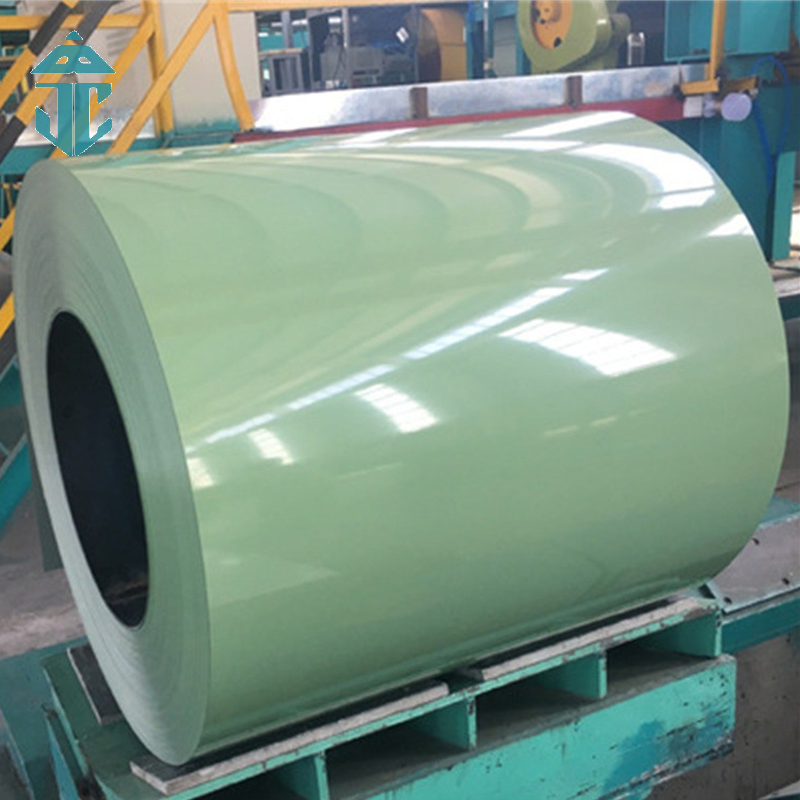

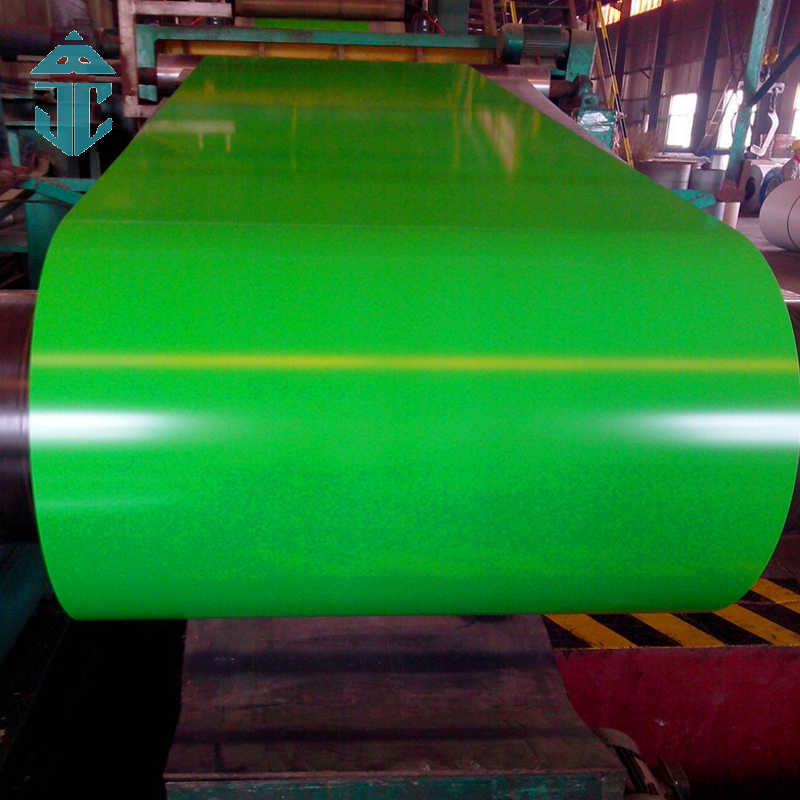

Q195 Ppgi Ppgl Coil
Product Name：PPGI / PPGL
Standard：EN10147, EN10142, DIN 17162, JIS G3302, ASTM A653
Type：Coil/Sheet/Plate/Strip
Thickness：0.12mm-1.2mm or 0.8mm/0.6mm/0.5mm/0.3mm/0.2mm
Width：600mm-1500mm or 914mm/1000mm/1200mm/1219mm/1220mm
Surface Color：RAL/Printed/Matte/Wrinkled/Embossed/Nano
Painting Coating：Top: 10 to 35 um (5 um + 12-20 um) Back: 7 +/- 2 um
Coating Types：PE/PVDF/HDP/SMP
+86 13182768889
wxbjc05@bjcmetal.com
Contact Us

◉ Product Details

PPGL coiled materials use DX51D+AZ, Q195 and galvanized steel sheets as base materials. PE coating is the most commonly produced by us and has a service life of up to 10 years.

Delixin can customize the color of PPGL membrane, such as wood grain, matte, etc.

PPGL coils are steel coils coated with PE, HDP, PVDF, etc., which have good processability, good corrosion resistance, and the original strength characteristics of steel plates.

Galvanized Steel Description

NamePPGI and PPGL
MaterialCGCC,SGCH,G350,G450,G550,DX51D,DX52D,DX53D
Thickness0.12mm-1.2mm or 0.8mm/0.6mm/0.5mm/0.3mm/0.2mm
Width600mm-1500mm or 914mm/1000mm/1200mm/1219mm/1220mm
Zinc coatingZ40-275g/m2
Painting CoatingTop: 10 to 35 um (5 um + 12-20 um) Back: 7 +/- 2 um
PaintingNippon, KCC,AkzoNobel, etc
Coating typePE, SMP, HDP, PVDF
Resin con-structureDouble painting and double baking process
Back side coating colorLight grey, white and so on
Coil ID508 / 610MM
Coil Weight3-5 Tons
Annual Output Quantity350,000MT
MOQaccording to customer's requirement
Payment T/T, WeChat pay, Alipay, etc
HardnessSoft hard(60),medium hard(HRB60-85),full hard(HRB85-95)
Surface structureNorma,Matt,PVC film,wood grain,Flower Grained,embossed, etc
Color chartRAL color number
ApplicationPPGI is featured with lightweight, good looking and Anti corrosion.
 It can be processed directly,mainly used for construction industry,
home electronic apparatus industry,electronic apparatus industry,furniture industry and transportation.

◉ Product Show


- Customised processing service -

In order to meet the processing request of more customers, we have added three new machining center divisions, first one is 5000W laser machining center, which can cut and bend according to customer's size, sandblasting machining center, painting processing center, With high quality products and top after-sales service, we have won trust and support of customers from all over theworld. Our steel products have been exported to 80 countries and areas: Chile, Peru, Russia, Mongolia, Philippines, Egypt, SaudiArabia, India, United States, Canada Australia and so on.

◉ FAQ

Q1 : Are you a manufacturer?
A1 : Our company is also a very professional steel product manufacturer. We can also provide various steels.
Q2 : Do you provide samples ? is it free or extra ?
A2 : The sample could can provide for customer with free,but the courier freight will be covered by customer account.
Q3 : How long is your delivery time?
A3 : Generally it is 7days if we have the exact goods in our stock. If not, it will take around 15-20 days to get goods ready for delivery.
Q4: Will you delivery the goods on time ?
A4: Yes,we promise to provide best quality products and delivery on time .Honesty is our company's tenet.
Q5 : Do you accept the third party inspection ?
A5 : Yes absolutely we accept.
Q6: What is your after-sale service ?
A6: We provide after-sale service and offer 100% guarantee on our products.

◉ Online Consultation

Reliable detection！

We accept formal third-party testing institutions for testing, we can also send samples to you free of charge, customer satisfaction shopping experience is always our pursuit
